Fargo P/N 052040-HID: IDcardPrinterSavings : Orange, CA

Shop By Brand

Home > Shop By Brand > Fargo > HID Fargo ID Card Printers > HID Fargo DTC4250e ID Card Printers >

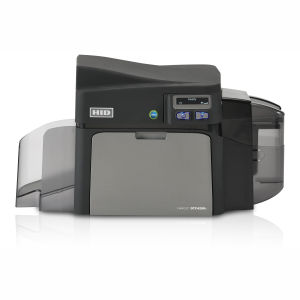

Fargo DTC4250E, Single Side, USB, Ethernet, iCLASS, MIFARE/DESfire, Contactless OmniKey 5122 Encoder (P/N 052040-HID)

Fargo DTC4250E, Single Side, USB, Ethernet, iCLASS, MIFARE/DESfire, Contactless OmniKey 5122 Encoder Graphic

Click on Image To Zoom In

Alternative Views:

List Price: $4,654.00
Non-Registered User Price*: MAP Restricted (see below)

We Offer:

Product Code: 052040-HID

Qty:

Description

Technical Specs

Supplies

Fargo DTC4250E, Single Side, USB, Ethernet, iCLASS, MIFARE/DESfire, Contactless OmniKey 5122 Encoder.

Resources:

Data Sheet

Tech Specs for P/N 052040-HID

Print Method

Dye-sublimation / resin thermal transfer

Resolution

300 dpi (11.8 dots/mm) continuous tone

Colors

Up to 16.7 million / 256 shades per pixel

Print Speed**

6 seconds per card (K*); 8 seconds per card (KO*); 16 seconds per card (YMCKO*); 24 seconds per card (YMCKOK*)

Input Hopper Card Capacity

Dual-input card hopper (200 cards)

Output Hopper Card Capacity

Up to 100 cards (.030 / .762 mm)

Memory

32 MB RAM

Interface

USB 2.0, optional Ethernet with internal print server

Dimensions

Single-sided printer: 9.8 H x 18.1 W x 9.2 D / 249 mm H x 460 mm W x 234 mm D
Dual-sided printer: 9.8 H x 18.7 W x 9.2 D / 249 mm H x 475 mm W x 234 mm D
Printer + lam: 18.9 H x 18.7 W x 9.2 D / 480 mm H x 475 mm W x 234 mm D

Weight

Single-sided printer: 9lbs / 4.1 Kg; dual-sided printer: 11lbs / 5 Kg; printer + lam: 20 lbs / 9.1 Kg

Supply Voltage

100-240Vac, 50-60Hz, 1.6 amps max.

Supply Frequency

50 Hz / 60 Hz

Warranty

Printer three years; printhead three years, unlimited pass with UltraCard®

Options

Single wire ethernet and USB 2.0 interface for inline printing and encoding (note: single wire Ethernet encoding is only available for iCLASS®, MIFARE®, and contact smart card encoding); dual-sided printing module; same-side input/output card hopper; smart card encoding modules (contact/contactless); magnetic stripe encoding module; printer cleaning kit; secure proprietary consumables system

Software

Swift ID™ embedded badging application, FARGO Workbench™ diagnostic utility with Color Assist™ spot-color matching

* Indicates the ribbon type and the number of ribbon panels printed where Y= yellow, M= magenta, C= cyan, K= resin black, O= overlay, B= dye sublimation black.** Print speed indicates an approximate print speed and is measured from the time a card drops into the output hopper to the time the next card drops into the output hopper. Print speeds do not include encoding time or the time needed for the PC to process the image. Process time is dependent on the size of the file, the CPU, amount of RAM and the amount of available resources at the time of the print.

Info for SKU 052040-HID last updated on 11/20/2024 8:23:17 AM

Supplies for P/N 052040-HID

P/N

Description

HID Fargo DTC4250e Color Ribbons

P/N 044261

Fargo Refillable Monochrome Ribbon Cartridge (Cartridge Only)
Fargo Refillable Monochrome Ribbon Cartridge (CARTRIDGE Only). For use with Fargo Persona C30e, Persona C30, DTC400, DTC400e, DTC4000, DTC1000, Other, C50, DTC1250e, DTC4250e and DTC1000Me ID Card Printers.

P/N 045100

Fargo DTC4000/DTC400/DTC4250E EZ 5-Panel Full-Color (YMCKO) Ribbon Cartridge
Fargo EZ 5-Panel YMCKO Ribbon Cartridge with Cleaning Roller Full-Color Ribbon with Resin Black and Clear Overlay-Panel (250 Images/Roll). For use with Fargo DTC4000, DTC400 and DTC4250E ID Card Printers.

P/N 045109

Fargo DTC4000/DTC4250E EZ 6-Panel Full-Color (YMCFKO) Ribbon Cartridge
Fargo EZ 6-Panel YMCFKO Ribbon Cartridge with Cleaning Roller Full-Color Ribbon with Resin Black, Fluorescing and Clear Overlay Panel (200 Images/Roll). For best Imaging Quality, recommended for use on UltraCard I (PVC) and UltraCard Premium (Composite) Cards Only. Fo. For use with Fargo DTC4000 and DTC4250E ID Card Printers.

P/N 045110

Fargo DTC4000/DTC4250E EZ 6-Panel Full-Color (YMCKOK) Ribbon Cartridge
Fargo EZ 6-Panel YMCKOK Ribbon Cartridge with Cleaning Roller Full-Color Ribbon with Two Resin Black Panels and Clear Overlay Panel (200 Images/Roll). For use with Fargo DTC4000 and DTC4250E ID Card Printers.

P/N 045114

Fargo DTC4000/DTC4250E 5-Panel Full-Color (YMCKO) Half-Panel Ribbon Cartridge
Fargo 5-Panel YMCKO Half-Panel Ribbon Cartridge with Cleaning Roller Full-Color Ribbon with Resin Black and Clear Overlay Panel (350 Images/Roll). For use with Fargo DTC4000 and DTC4250E ID Card Printers.

HID Fargo DTC4250e Monochrome Ribbons

P/N 045101

Fargo EZ Monochrome Ribbon Cartridge - Black (K) Premium
Fargo EZ Premium Black (K) Monochrome Ribbon Cartridge with Cleaning Roller (1000 Images/Roll). For use with Fargo C50, DTC1000, DTC1000M, DTC1000Me, DTC1250e, DTC4000 and DTC4250e ID Card Printers.

P/N 045102

Fargo EZ Monochrome Ribbon Cartridge - Black (K) Standard
Fargo EZ Standard Black (K) Monochrome Ribbon Cartridge with Cleaning Roller (1000 Images/Roll). For use with Fargo C50, DTC1000, DTC1000M, DTC1000Me, DTC1250e, DTC4000 and DTC4250e ID Card Printers.

P/N 045103

Fargo EZ Monochrome Ribbon Cartridge - Blue
Fargo EZ Blue Monochrome Ribbon Cartridge with Cleaning Roller (1000 Images/Roll). For use with Fargo C50, DTC1000, DTC1000M, DTC1000Me, DTC1250e, DTC4000 and DTC4250e ID Card Printers.

P/N 045105

Fargo EZ Monochrome Ribbon Cartridge - Red
Fargo EZ Red Monochrome Ribbon Cartridge with Cleaning Roller (1000 Images/Roll). For use with Fargo C50, DTC1000, DTC1000M, DTC1000Me, DTC1250e, DTC4000 and DTC4250e ID Card Printers.

P/N 045106

Fargo EZ Monochrome Ribbon Cartridge - White
Fargo EZ White Monochrome Ribbon Cartridge with Cleaning Roller (1000 Images/Roll). For use with Fargo C50, DTC1000, DTC1000M, DTC1000Me, DTC1250e, DTC4000 and DTC4250e ID Card Printers.

P/N 045111

Fargo EZ Monochrome Ribbon Cartridge - KO
Fargo EZ KO Monochrome Ribbon Cartridge with Cleaning Roller: Premium Black (K) and Clear Overlay Panel (500 Images/Roll). For use with Fargo C50, DTC1000, DTC1000M, DTC1000Me, DTC1250e, DTC4000 and DTC4250e ID Card Printers.

P/N 045113

Fargo C50/DTC1000/DTC1250e/DTC4000/DTC4250e EZ Monochrome Ribbon Cartridge - BO
Fargo EZ BO: Dye-sublimation Black and Clear Overlay Panel (500 Images/Roll). For use with Fargo C50, DTC1000, DTC1250e, DTC4000 and DTC4250e ID Card Printers.

P/N 045117

Fargo Monochrome ECO Refill Ribbon - Black (K) Standard
Fargo ECO Standard Black (K) Refill Monochrome Ribbon with Cleaning Roller (1000 Images/Roll). For use with Fargo C50, DTC1000, DTC1000M, DTC1000Me, DTC1250e, DTC4000 and DTC4250e ID Card Printers.

P/N 045130

Fargo EZ Monochrome Ribbon Cartridge - Gold Metallic
Fargo EZ Gold Metallic Monochrome Ribbon Cartridge with Cleaning Roller (500 Images/Roll). For use with Fargo C50, DTC1000, DTC1000M, DTC1000Me, DTC1250e, DTC4000 and DTC4250e ID Card Printers.

HID Fargo DTC4250e Printer Upgrades

P/N 047709

Fargo ISO Magnetic Stripe Encoder
Fargo ISO Magnetic Stripe Encoder Upgrade Kit. For use with Fargo DTC5500LMX, DTC1250e, DTC4250e, DTC4500e, DTC1000, DTC1000M, DTC1000Me, DTC4000 and DTC4500 Card Printers.

P/N 047710

Fargo JIS II Magnetic Stripe Encoder
Fargo JIS II Magnetic Stripe Encoder Upgrade Kit. For use with Fargo DTC5500LMX, DTC1250e, DTC4250e, DTC4500e, DTC1000, DTC1000Me, DTC4000 and DTC4500 Card Printers.

P/N 047703

Fargo DTC5500LMX/DTC4250e/DTC4500e HID Prox Card Encoder Module
Fargo HID Prox Card Encoder Module (OmniKey CardMan 5125) Upgrade Kit. For use with Fargo DTC5500LMX, DTC4250e and DTC4500e Card Printers.

P/N 047704

Fargo DTC5500LMX/DTC4250e/DTC4500e HID Prox, iCLASS and MIFARE/DESFire Card Encoder Module
Fargo HID Prox, iCLASS and MIFARE/DESFire Card Encoder Module (OmniKey CardMan 5121 and 5125). For use with Fargo DTC5500LMX, DTC4250e and DTC4500e Card Printers.

P/N 047434

Fargo DTC5500LMX/DTC4250e/DTC4500e HID Prox, iCLASS (SE), MIFARE/DESfire and Seos Encoder Module
Fargo OmniKey 5127 Upgrade Kit - HID Prox, iCLASS (SE), MIFARE/DESfire and Seos Encoder (USB Only). For use with Fargo DTC5500LMX, DTC4250e and DTC4500e Card Printers.

P/N 047439

Fargo DTC1250e/DTC4250e/DTC4500e OmniKey 5122 Contact and Contactless Encoder
Fargo OmniKey 5122 Contact and Contactless Field Upgrade Kit for DTCe Printers. For use with Fargo DTC1250e, DTC4250e and DTC4500e Card Printers.

P/N 047440

Fargo DTC1250e/DTC4250e/DTC4500e OmniKey 5122 Contactless Only Encoder
Fargo OmniKey 5122 Contactless Only Field Upgrade Kit for DTCe Printers. For use with Fargo DTC1250e, DTC4250e and DTC4500e Card Printers.

P/N 047715

Fargo DTC1250e/DTC4250e/DTC4500e HID Prox and Contact Smart Card Encoder
Fargo HID Prox and Smart Card Encoder (OmniKey CardMan 5125), Motorized CS. For use with Fargo DTC1250e, DTC4250e and DTC4500e Card Printers.

P/N 047435

Fargo DTC4250e/DTC4500e Dual-Sided Printing Module
Fargo Dual-Sided Printing Module. For use with Fargo DTC4250e and DTC4500e Card Printers.

P/N 047721

Fargo DTC4000/DTC4500/DTC4250e/DTC4500e Same-Side Input-Output Card Hopper
Fargo Same-Side Input-Output Card Hopper. For use with Fargo DTC4000, DTC4500, DTC4250e and DTC4500e Card Printers.

P/N 047722

Fargo DTC4000/DTC4250e/DTC4500e Dual-Input Card Hopper
Fargo Dual-Input Card Hopper. For use with Fargo DTC4000, DTC4250e and DTC4500e Card Printers.

P/N 047729

Fargo Wireless Module
Fargo Wireless Module Customer Kit. For use with Fargo DTC1000Me, DTC1250e, DTC1500, DTC4250e, DTC4500e, DTC5500LMX and HDP5000 Card Printers.

P/N 047730

Fargo Wireless Module Spare Clips Kit
Fargo Wireless Module Spare Clips Kit. For use with Fargo DTC1000Me, DTC1250e, DTC1500, DTC4250e, DTC4500e, DTC5500LMX and HDP5000 Card Printers.

HID Fargo DTC4250e Card Stock

P/N 081750

Fargo Certified UltraCard Blank PVC Cards with Lo-Co Magnetic Stripe
Fargo Certified UltraCard PVC Cards with Low-Coercivity Magnetic Stripe, White, CR-80, 30 mil, 500 Cards/Box.

P/N 081751

Fargo Certified UltraCard Blank PVC Cards with Hi-Co Magnetic Stripe
Fargo Certified UltraCard PVC Cards with High-Coercivity Magnetic Stripe, White, CR-80, 30 mil, 500 Cards/Box.

P/N 081754

Fargo Certified UltraCard Blank PVC Cards - CR-80
Fargo Certified UltraCard PVC Cards, White, CR-80, 30 mil, 500 Cards/Box.

P/N 081758

Fargo Certified UltraCard Blank PVC Cards - 10 mil
Fargo Certified UltraCard PVC Cards, White, CR-80, 10 mil, 1000 Cards/Box (Note: Ideal for use as Business Cards).

P/N 081759

Fargo Certified UltraCard Adhesive Paper-backed PVC Cards - CR-79
Fargo Certified UltraCard PVC Cards, White, CR-79, 10 mil, Adhesive Paper-backed; Designed for adhesion to Inside Edge of Proximity Card), 500 Cards/Box.

P/N 082136

Fargo UltraCard Premium Blank Composite PVC Cards
Fargo Certified UltraCard Premium Composite PVC Cards (60% PVC/40% Poly), White, CR-80, 30 mil, 500 Cards/Box.

P/N 082137

Fargo UltraCard Premium Blank Composite PVC Cards with Hi-Co Magnetic Stripe
Fargo Certified UltraCard Premium Composite PVC Cards (60% PVC/40% Poly) with High-Coercivity Magnetic Stripe, White, CR-80, 30 mil, 500 Cards/Box.

P/N 082266

Fargo UltraCard Adhesive Paper-backed PVC Cards - CR-80
Fargo Certified UltraCard PVC Cards, White, CR-80, 10 mil, Adhesive Paper-backed, 500 Cards/Box.

P/N 082267

Fargo UltraCard Adhesive Mylar-backed PVC Cards - CR-80
Fargo Certified UltraCard PVC Cards, White, CR-80, 10 mil, Adhesive Mylar-backed, 500 Cards/Box.

P/N 082279

Fargo UltraCard Adhesive Mylar-backed PVC Cards - CR-79
Fargo Certified UltraCard PVC Cards, White, CR-79, 10 mil, Adhesive Mylar-backed Cards (NOT for use in DTC300/400; Designed for adhesion to Inside Edge of Proximity Card), 500 Cards/Box.

P/N 082289

Fargo UltraCard PC Blank PVC Cards - CR-80
Fargo Certified UltraCard PC Cards (Compatible with Laser Engraving), White, CR-80, 30 mil, 500 Cards/Box.

HID Fargo DTC4250e Cleaning Supplies

P/N 044260

Fargo Cleaning Rollers
Fargo Cleaning Rollers, 3-Pack. For use with Fargo Persona M30, Persona M30e, Persona C30, Persona C30e, C50, DTC1000, DTC1000M, DTC1000Me, DTC400, DTC400e, DTC1250e, DTC4000 and DTC4250e ID Card Printers.

P/N 086131

Fargo Extra Cleaning Cards Double-Sided
Fargo Extra Cleaning Cards Double-Sided, 50 Count. For use with Fargo Persona M30, Persona M30e, Persona C30, Persona C30e, C50, DTC400, DTC400e, DTC1000, DTC1000M, DTC1250e, DTC1500, DTC4000, DTC4250e and DTC4500 ID Card Printers.

P/N 086177

Fargo Cleaning Kit for Fargo ID Card Printer
Fargo Cleaning Kit; Kit includes 4 Cleaning Swabs and 10 Adhesive Cleaning Cards. For use with Fargo Persona M30, Persona M30e, Persona C30, C50, DTC400, DTC400e, DTC1000, DTC1000M, DTC1000Me, DTC1250e, DTC1500, DTC4000, DTC4250e and DTC4500 ID Card Printers.

P/N 082133

Fargo Isopropyl Alcohol Cleaning Cards
Fargo Isopropyl Alcohol Cleaning Cards, 10 Pack. For use with Fargo Persona M30, Persona M30e, Persona C30, Persona C30e, C50, DTC400, DTC400e, DTC1000, DTC1000M, DTC1250e, DTC1500, DTC4000, DTC4250e and DTC4500 ID Card Printers.

HID Fargo DTC4250e Printheads

P/N 047500

Fargo Thermal Replacement Printhead for use with Fargo DTC400, DTC1000, DTC4000 and DTC4500 Badge Printer
Fargo Genuine Thermal Printhead (Configured for Field Replacement) for use with Fargo DTC400, DTC1000, DTC4000 and DTC4500 ID Card Printers.

Accessories info generated on 11/20/2024 8:23:17 AM.

Overview/Features
From plastic loyalty and photo ID cards to more sophisticated access cards with embedded electronics, HID Global's professional-grade FARGO DTC4250e card printer / encoder is able to produce large quantities of extremely durable credentials both quickly and easily. Ideal for small to mid-size businesses, schools, and local government agencies that require reliable printing, the DTC4250e features a flexible and modular design that can be easily adapted whenever your organization grows or your printing needs change.

Part Number Aliases
This Fargo SKU 052040-HID is also known as 052040HID and Far-052040-HID.
